1911A-1 Hammer

[McGee]

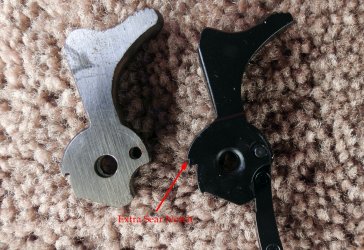

My Springfield Armory 1911A-1 has an extra, small sear notch just before the safety notch. I think it was a manufacturing defect, and I contacted Springfield Armory but received no response. I've attached a picture with an arrow indicating the additional notch. A normal hammer is pictured beside the Springfield Armory hammer for reference.

I first noticed that touching the trigger caused the hammer to fall from what I thought was the safety notch. However, I learned that to engage the actual safety notch required pulling back the hammer back a little further. I disassembled the gun and removed the hammer for inspection.

The safety notch functions to catch the hammer if it accidentally slips when thumb cocking, and I would never use it for a carry position, but I don't like the "ambiguous state" with this hammer position and plan to replace the hammer.

I'm interested in other opinions.



[Old_Me]

My Springfield Armory 1911A-1 has an extra, small sear notch just before the safety notch. I think it was a manufacturing defect, and I contacted Springfield Armory but received no response. I've attached a picture with an arrow indicating the additional notch. A normal hammer is pictured beside the Springfield Armory hammer for reference.

I first noticed that touching the trigger caused the hammer to fall from what I thought was the safety notch. However, I learned that to engage the actual safety notch required pulling back the hammer back a little further. I disassembled the gun and removed the hammer for inspection.

The safety notch functions to catch the hammer if it accidentally slips when thumb cocking, and I would never use it for a carry position, but I don't like the "ambiguous state" with this hammer position and plan to replace the hammer.

I'm interested in other opinions.

all i can say is, "call S/A, as they are slow to respond to emails"

and next..

Springfield designed that hammer for a reason....

if you replace it, you may be disabling some sort of safety type of reason..???

also too, if you replace that hammer, just remember that if you do/did disable any safety feature, and you have "some sort" of accident..??

you are on your own, you cannot blame S/A.....



[10mmLife]

@xdman may be able to chime in on this. He probably owns every SA firearm to date.



[trader]

SA has a warranty, contact them and send it in for adjustment/repair



[shanneba]

Yours is not the only one.

Other examples-

Springfield EMP 4 Three Hammer Clicks

www.1911forum.com

Springfield 1911-A1 Target hammer weirdness

I have mostly just shot the pistol and not looked too close. All those MIM parts, ick. I never thought much of the pistol. I shortened the trigger bow as muc

www.bullseyeforum.net

Factory Springfield 1911 Large Loop Commander Style 1911 Hammer

Factory Springfield 1911 Large Loop Commander Style 1911 Hammer for sale online.

www.gunsinternational.com



[Mr.W.]

Welcome to the forum, from Ohio.



[Annihilator]

My Springfield Armory 1911A-1 has an extra, small sear notch just before the safety notch. I think it was a manufacturing defect, and I contacted Springfield Armory but received no response. I've attached a picture with an arrow indicating the additional notch. A normal hammer is pictured beside the Springfield Armory hammer for reference.

I first noticed that touching the trigger caused the hammer to fall from what I thought was the safety notch. However, I learned that to engage the actual safety notch required pulling back the hammer back a little further. I disassembled the gun and removed the hammer for inspection.

The safety notch functions to catch the hammer if it accidentally slips when thumb cocking, and I would never use it for a carry position, but I don't like the "ambiguous state" with this hammer position and plan to replace the hammer.

I'm interested in other opinions.

Does the gun function ok, if so, what’s the issue? And why would you take the hammer out, it’s not needed for normal take downs and cleaning.



[Scevaph]

Perfectly normal for SA. My Ronin is the same way. SA calls it the safety stop.

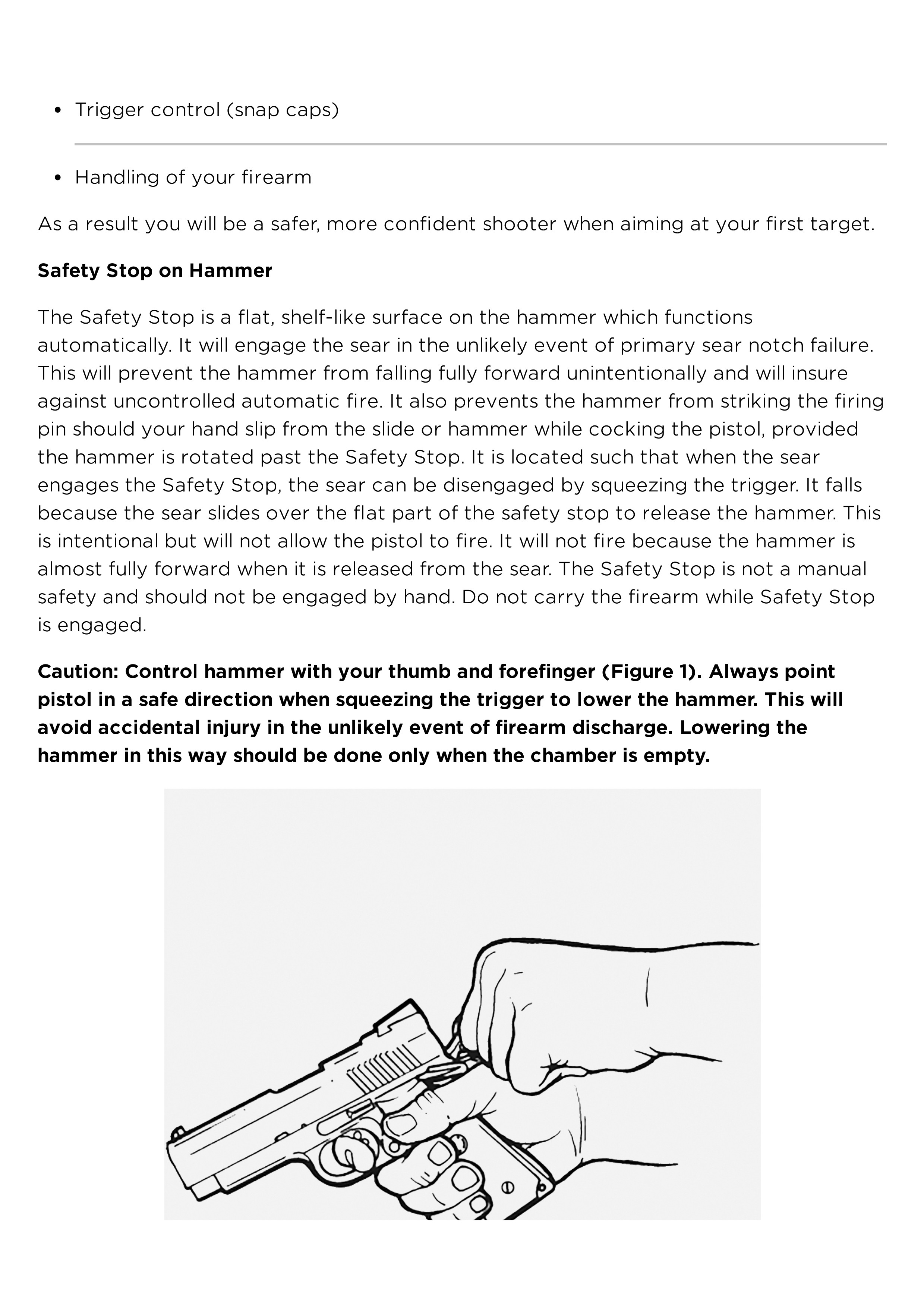

From the manual



[Annihilator]

Perfectly normal for SA. My Ronin is the same way. SA calls it the safety stop.
From the manual

Your attachment doesn’t work.



[Scevaph]

Your attachment doesn’t work.

I edited it to a jpeg, you should see it now.



[Annihilator]

I edited it to a jpeg, you should see it now.

Yep, fine now, thanks!



[rcurtner]

Welcome to the forum from South Texas



[HayesGreener]

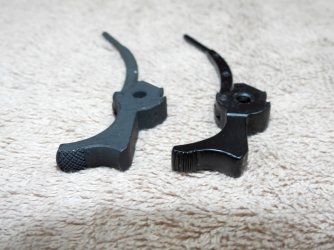

Note the one here from a Tactical



[McGee]

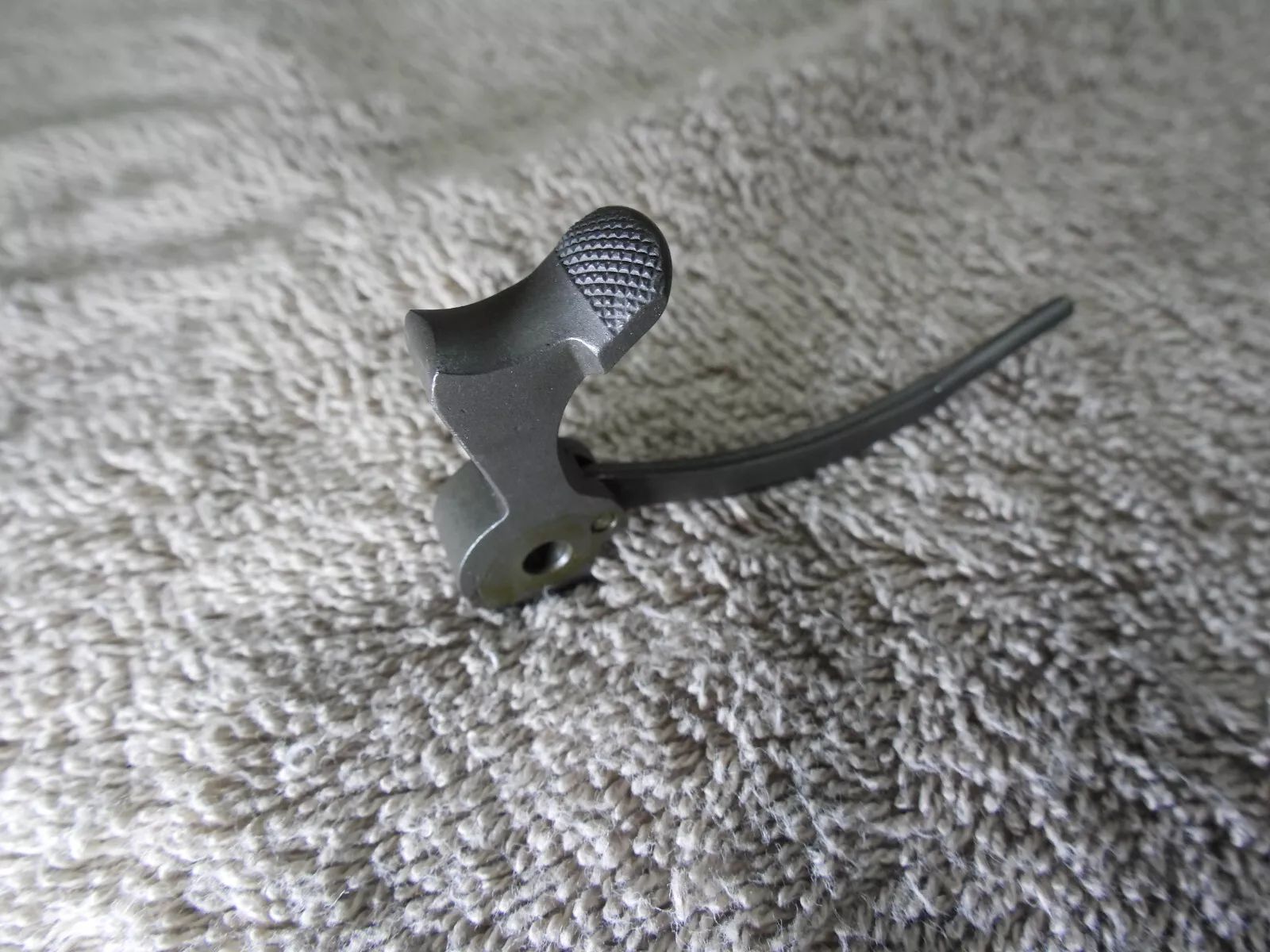

I see that others have hammers with this additional notch. My first experience with 1911 style pistols was a pair of Series 70 Colts I purchased in 1976... a 45ACP & a 38 Super Auto. Of the may I've owned, this is the first with the additional notch. My preferred hammer is a pre-1939 wide-spur, checkered. Today, good ones are no longer available at reasonable prices. The reproductions don't seem as nicely made.
