The .338 Norma Magnum
The .338 Norma Magnum was originally developed as a long-range sport shooting wildcat cartridge by the American sport shooter Jimmie Sloan with the help of Dave Kiff, owner of Pacific Tool and Gauge, who made the reamers and headspace gauges. Barrels were supplied by Rock Creek Barrel Inc.
Various twist rates were tried with 5R rifling. It was designed as a way to optimize shooting the 300 gr .338 caliber Sierra HPBT MatchKing projectile from actions and magazines that lack the length to handle cartridges exceeding 3.60 in in overall length. The 300 gr .338 caliber Sierra HPBT MatchKing projectile was not available when the .338 Lapua Magnum was originally designed and .338 Lapua Magnum cartridges intended for military use are generally loaded with shorter 250 gr to 285 gr projectiles.
Later the design was purchased by the Swedish ammunition manufacturer Norma. The .338 Norma Magnum cartridge was C.I.P. certified on 26 May 2010 and thus became an officially registered and sanctioned rifle cartridge.

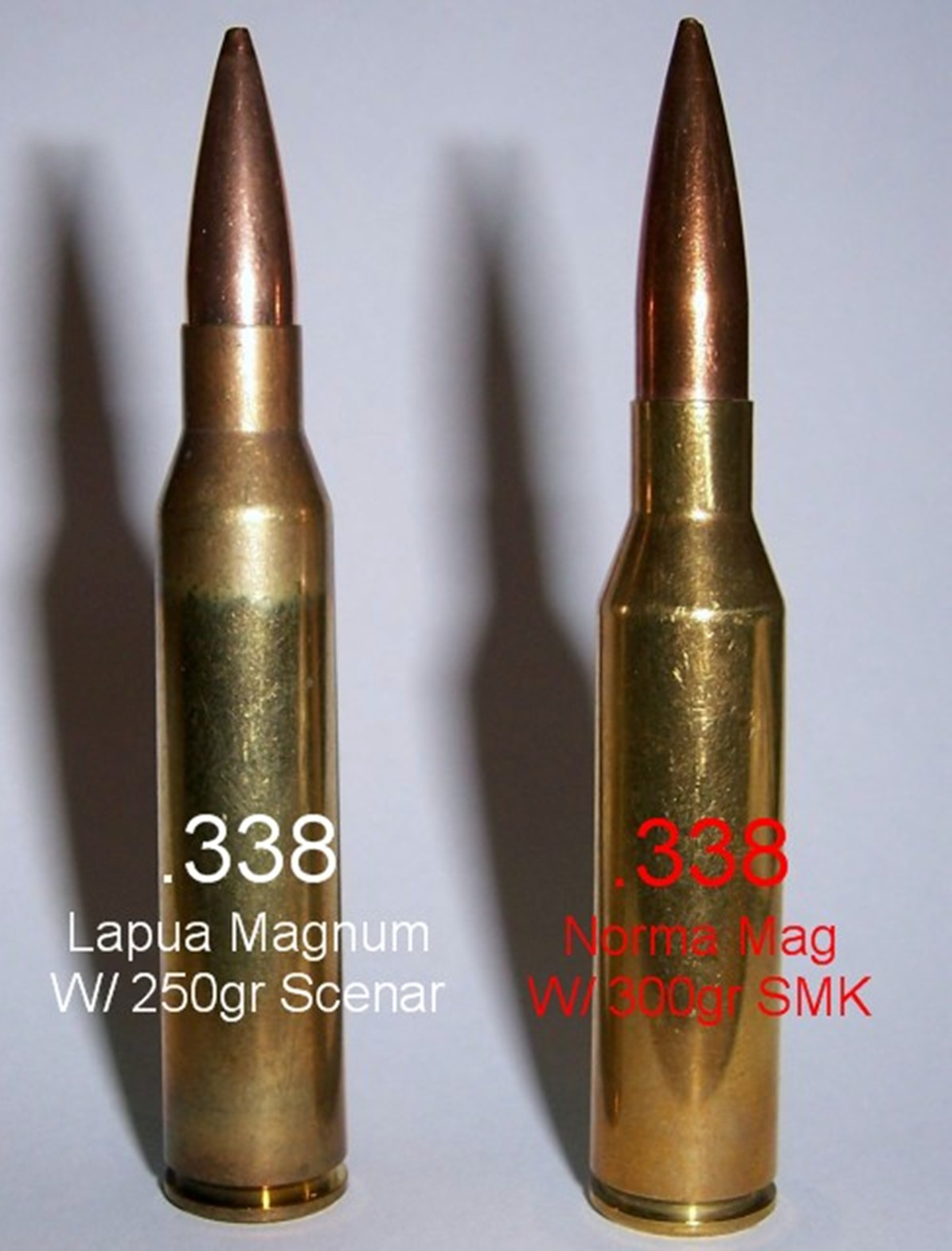

The .338 Norma Magnum prior to C.I.P. certification had a shorter cartridge overall length 3.60 in compared to the cartridge overall length of the .338 Lapua Magnum at 3.681 in. The .338 Norma Magnum loaded with 300 gr .338 caliber Sierra HPBT projectiles will have these projectile less deeply seated compared to the .338 Lapua Magnum when both cartridges are loaded to 3.681 in overall length.
To achieve this the .338 Norma Magnum cartridge utilizes a shorter case 2.492 in with less taper and a slightly sharper shoulder angle with a slightly longer neck, resulting in about 6.5% less case capacity. However, the cartridge overall lengths of the .338 Norma Magnum and .338 Lapua Magnum were, as of 2013, determined at 3.681 in by the C.I.P. rulings for these cartridges.
The .338 Norma Magnum was designed to improve upon the .338 Lapua Magnum when loaded with 300 gr Sierra very-low-drag bullets in magazines and actions that restrict the .338 Lapua Magnum's maximum cartridge overall length. In long range precision sport shooting rifles, which the .338 Norma Magnum cartridges were designed for, the chamber and throat area of the barrel are often custom made by a gunsmith for a particular cartridge, meaning the rifle is consciously constructed for optimal use with a particular cartridge case and projectile combination. If projectiles with differing dimensions are to be used this will generally erode such a custom-made system's accuracy potential. This makes objective comparisons between cartridges hard, since cartridges are essential parts of a larger rifle system.
As of February 2009, the .338 Norma Magnum was still a very new cartridge with little commercial availability. However, it was available for purchase.
On June 17, 2008, the U.S. government issued a market survey to support a requirement for a Precision Sniper Rifle (PSR) to possibly replace the currently fielded Bolt Action SOF Sniper Systems MK 13 (.300 Winchester Magnum) and the M40 and M24 (7.62×51mm NATO) chambered to safely fire factory produced "non-wildcat" .338 caliber ammunition. This means the .338 Lapua Magnum and .338 Norma Magnum or derivatives of these cartridges would be two likely candidates for the cartridge part of this market survey and winning future U.S. government contracts.
In May 2017 the United States Special Operations Command, in conjunction with the United States Marine Corps issued a sources-sought notice for 5,000 Lightweight Medium Machine Guns (LWMMG) chambered for .338 Norma Magnum polymer-cased ammunition. The aim is to identify a machine gun with a 24 inch long barrel weighing 24 pounds or less, which offers sufficient accuracy out to 2,000 meters to engage area targets and vehicles. In 2019 the U.S. Special Operations Command awarded Barrett Manufacturing a $50,000,000 contract, ordering the Barrett MRAD chambered in .338 Norma Magnum as the Mk 22 Advanced Sniper Rifle (ASR).

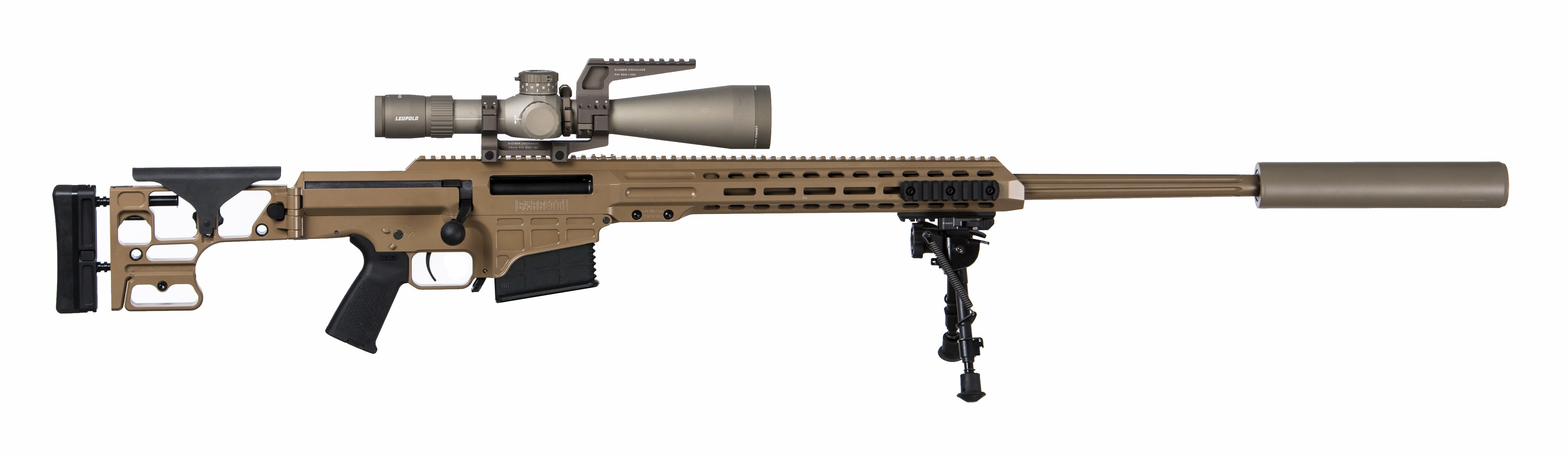

Barrett MRAD
In 2020 the U.S. Special Operations Command awarded Sig Sauer a contract, ordering the MG-338 machine gun chambered in .338 Norma Magnum.

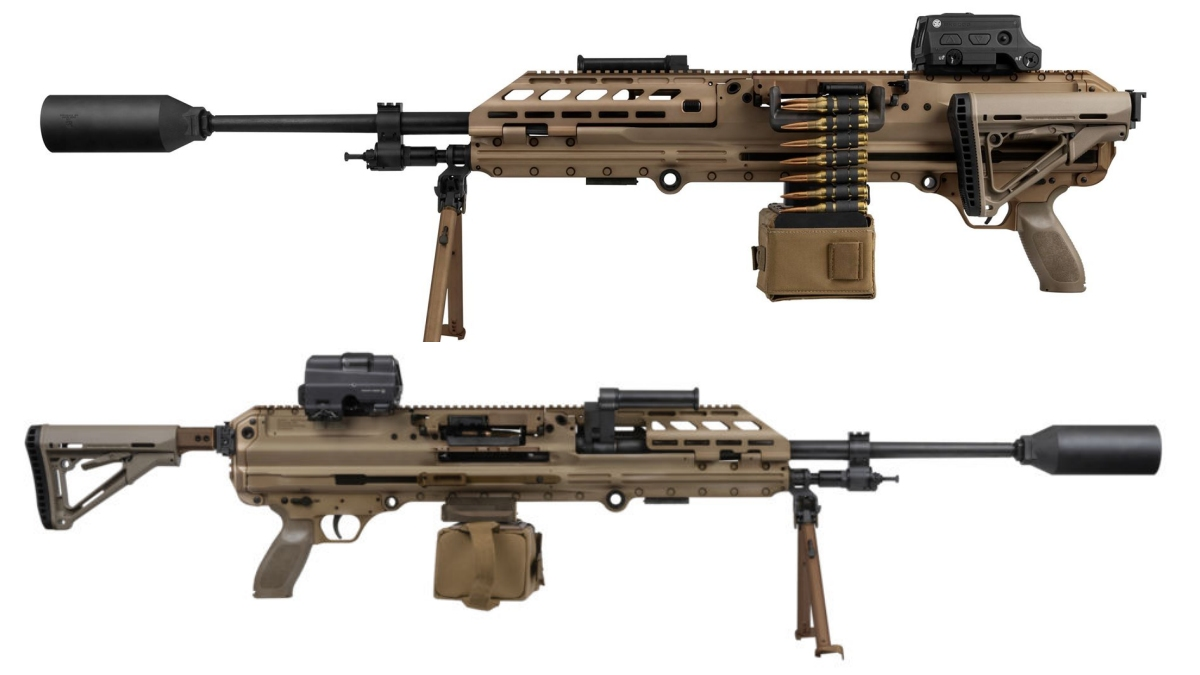

Sig Sauer MG338
The .338 Norma Magnum was originally developed as a long-range sport shooting wildcat cartridge by the American sport shooter Jimmie Sloan with the help of Dave Kiff, owner of Pacific Tool and Gauge, who made the reamers and headspace gauges. Barrels were supplied by Rock Creek Barrel Inc.
Various twist rates were tried with 5R rifling. It was designed as a way to optimize shooting the 300 gr .338 caliber Sierra HPBT MatchKing projectile from actions and magazines that lack the length to handle cartridges exceeding 3.60 in in overall length. The 300 gr .338 caliber Sierra HPBT MatchKing projectile was not available when the .338 Lapua Magnum was originally designed and .338 Lapua Magnum cartridges intended for military use are generally loaded with shorter 250 gr to 285 gr projectiles.
Later the design was purchased by the Swedish ammunition manufacturer Norma. The .338 Norma Magnum cartridge was C.I.P. certified on 26 May 2010 and thus became an officially registered and sanctioned rifle cartridge.
The .338 Norma Magnum prior to C.I.P. certification had a shorter cartridge overall length 3.60 in compared to the cartridge overall length of the .338 Lapua Magnum at 3.681 in. The .338 Norma Magnum loaded with 300 gr .338 caliber Sierra HPBT projectiles will have these projectile less deeply seated compared to the .338 Lapua Magnum when both cartridges are loaded to 3.681 in overall length.
To achieve this the .338 Norma Magnum cartridge utilizes a shorter case 2.492 in with less taper and a slightly sharper shoulder angle with a slightly longer neck, resulting in about 6.5% less case capacity. However, the cartridge overall lengths of the .338 Norma Magnum and .338 Lapua Magnum were, as of 2013, determined at 3.681 in by the C.I.P. rulings for these cartridges.
The .338 Norma Magnum was designed to improve upon the .338 Lapua Magnum when loaded with 300 gr Sierra very-low-drag bullets in magazines and actions that restrict the .338 Lapua Magnum's maximum cartridge overall length. In long range precision sport shooting rifles, which the .338 Norma Magnum cartridges were designed for, the chamber and throat area of the barrel are often custom made by a gunsmith for a particular cartridge, meaning the rifle is consciously constructed for optimal use with a particular cartridge case and projectile combination. If projectiles with differing dimensions are to be used this will generally erode such a custom-made system's accuracy potential. This makes objective comparisons between cartridges hard, since cartridges are essential parts of a larger rifle system.
As of February 2009, the .338 Norma Magnum was still a very new cartridge with little commercial availability. However, it was available for purchase.
On June 17, 2008, the U.S. government issued a market survey to support a requirement for a Precision Sniper Rifle (PSR) to possibly replace the currently fielded Bolt Action SOF Sniper Systems MK 13 (.300 Winchester Magnum) and the M40 and M24 (7.62×51mm NATO) chambered to safely fire factory produced "non-wildcat" .338 caliber ammunition. This means the .338 Lapua Magnum and .338 Norma Magnum or derivatives of these cartridges would be two likely candidates for the cartridge part of this market survey and winning future U.S. government contracts.
In May 2017 the United States Special Operations Command, in conjunction with the United States Marine Corps issued a sources-sought notice for 5,000 Lightweight Medium Machine Guns (LWMMG) chambered for .338 Norma Magnum polymer-cased ammunition. The aim is to identify a machine gun with a 24 inch long barrel weighing 24 pounds or less, which offers sufficient accuracy out to 2,000 meters to engage area targets and vehicles. In 2019 the U.S. Special Operations Command awarded Barrett Manufacturing a $50,000,000 contract, ordering the Barrett MRAD chambered in .338 Norma Magnum as the Mk 22 Advanced Sniper Rifle (ASR).

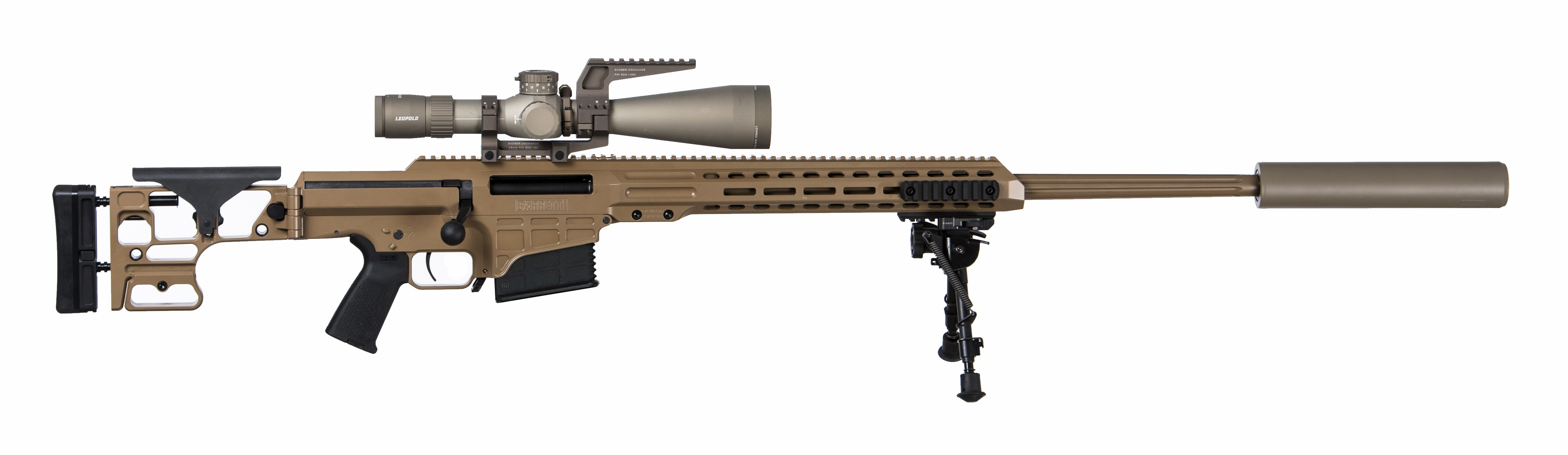

Barrett MRAD
In 2020 the U.S. Special Operations Command awarded Sig Sauer a contract, ordering the MG-338 machine gun chambered in .338 Norma Magnum.

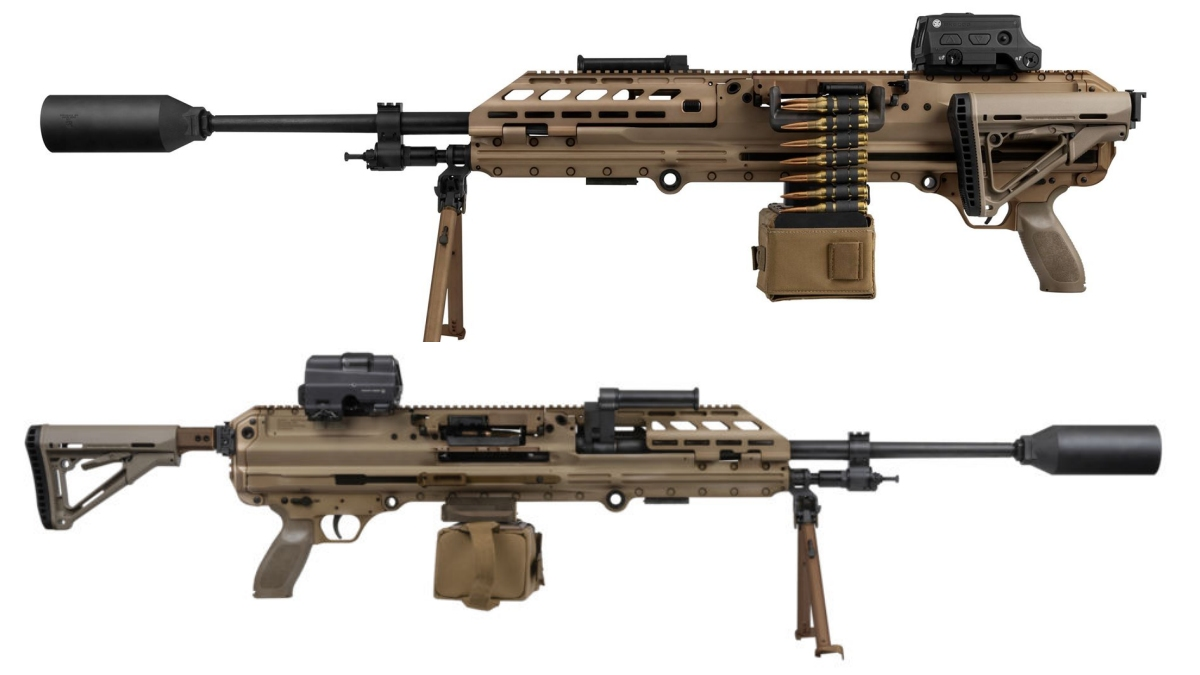

Sig Sauer MG338
