Gun Talk Live discusses new Hornady's 6MM ARC ammunition

[BET7]

Interesting discussion on Hornady's newly announced ammunition the 6MM ARC. The discussion starts at the 8:20 mark and continues to 14:50 (they discuss other topics like the protests, USCCA protection, etc.).

Here's a link to Hornady's webpage detailing the 6MM ARC

6mm ARC - Hornady Manufacturing, Inc

The 6mm ARC is an extremely versatile cartridge that does what much larger cartridges can, and everything that smaller cartridges can’t.

www.hornady.com



[Annihilator]

Good article and link grasshopper.



[BET7]

Good article and link grasshopper.

Thanks, I thought so too. It's interesting how is compares to the 308, 223/556, 224 Valkyrie, 6.5 Grendel and 6.8 SPC. They even talked about the 6 & 6.5 CM. It sounds like this round was introduced as part of the military looking for a replacement of the 556 ammunition. In the Hornady link, it shows all the Gun Manufactures already lined up to produce firearms chambered in this caliber. I'm not a hunter, but they seem to indicated that this round had greater distance, less recoil, more impact energy, weighed less, etc., as they compared it indiviidually, to the rounds mentioned above.



[TEXASforLIFE]

Just call it a 6ppc or 6ssm. Less rounds in the mag or same capacity with extra weight. Make the 6.8 into a 6mm and it will be better. Keep the bullets @ 69 to 95gr and be more optimal for the m4 setup/length. Do the test @ 14.5"barrel length and the you have 2,100 to 2,350fps about depending on bullet weight. The worst testing is given by the manufacturer and mostly over exaggerated.



[BangBang]

I’m still liking it, from everything I’m able to find on it. 25rnds, .243 diameter bullet with 103-108 bullet to boot. ~2750fps, ~1800ftlb energy with 18-24 inch barrel.

6mm ARC 105 gr BTHP Black Ballistics

Distance (yds)	Drop (Mils)	5 Mph Wind (Mils)	Velocity (fps)	Energy (ft/lbs)
100	0	0	2454	1404
200	0.3	0.1	2290	1223
300	1.1	0.2	2133	1060
400	2.0	0.3	1981	915
500	3.1	0.4	1835	785
600	4.2	0.5	1694	669
700	5.6	0.6	1558	566
800	7.1	0.8	1427	475
900	8.7	0.9	1303	396
1000	10.7	1.1	1185	327
1100	12.9	1.2	1093	279
1200	15.4	1.4	1045	255

6mm ARC 108 gr ELD Match Ballistics

Distance (yds)	Drop (Mils)	5 Mph Wind (Mils)	Velocity (fps)	Energy (ft/lbs)
100	0	0	2395	1376
200	0.3	0.1	2320	1291
300	1.1	0.2	2173	1133
400	2.0	0.3	2032	990
500	3.0	0.4	1896	862
600	4.1	0.5	1764	746
700	5.3	0.6	1636	642
800	6.7	0.7	1512	549
900	8.3	0.8	1394	466
1000	10.0	0.9	1280	393
1100	11.9	1.1	1174	330
1200	14.2	1.2	1092	286



[TEXASforLIFE]

I’m still liking it, from everything I’m able to find on it. 25rnds, .243 diameter bullet with 103-108 bullet to boot. ~2750fps, ~1800ftlb energy with 18-24 inch barrel.

6mm ARC 105 gr BTHP Black Ballistics

Distance (yds)	Drop (Mils)	5 Mph Wind (Mils)	Velocity (fps)	Energy (ft/lbs)
100	0	0	2454	1404
200	0.3	0.1	2290	1223
300	1.1	0.2	2133	1060
400	2.0	0.3	1981	915
500	3.1	0.4	1835	785
600	4.2	0.5	1694	669
700	5.6	0.6	1558	566
800	7.1	0.8	1427	475
900	8.7	0.9	1303	396
1000	10.7	1.1	1185	327
1100	12.9	1.2	1093	279
1200	15.4	1.4	1045	255

6mm ARC 108 gr ELD Match Ballistics

Distance (yds)	Drop (Mils)	5 Mph Wind (Mils)	Velocity (fps)	Energy (ft/lbs)
100	0	0	2395	1376
200	0.3	0.1	2320	1291
300	1.1	0.2	2173	1133
400	2.0	0.3	2032	990
500	3.0	0.4	1896	862
600	4.1	0.5	1764	746
700	5.3	0.6	1636	642
800	6.7	0.7	1512	549
900	8.3	0.8	1394	466
1000	10.0	0.9	1280	393
1100	11.9	1.1	1174	330
1200	14.2	1.2	1092	286

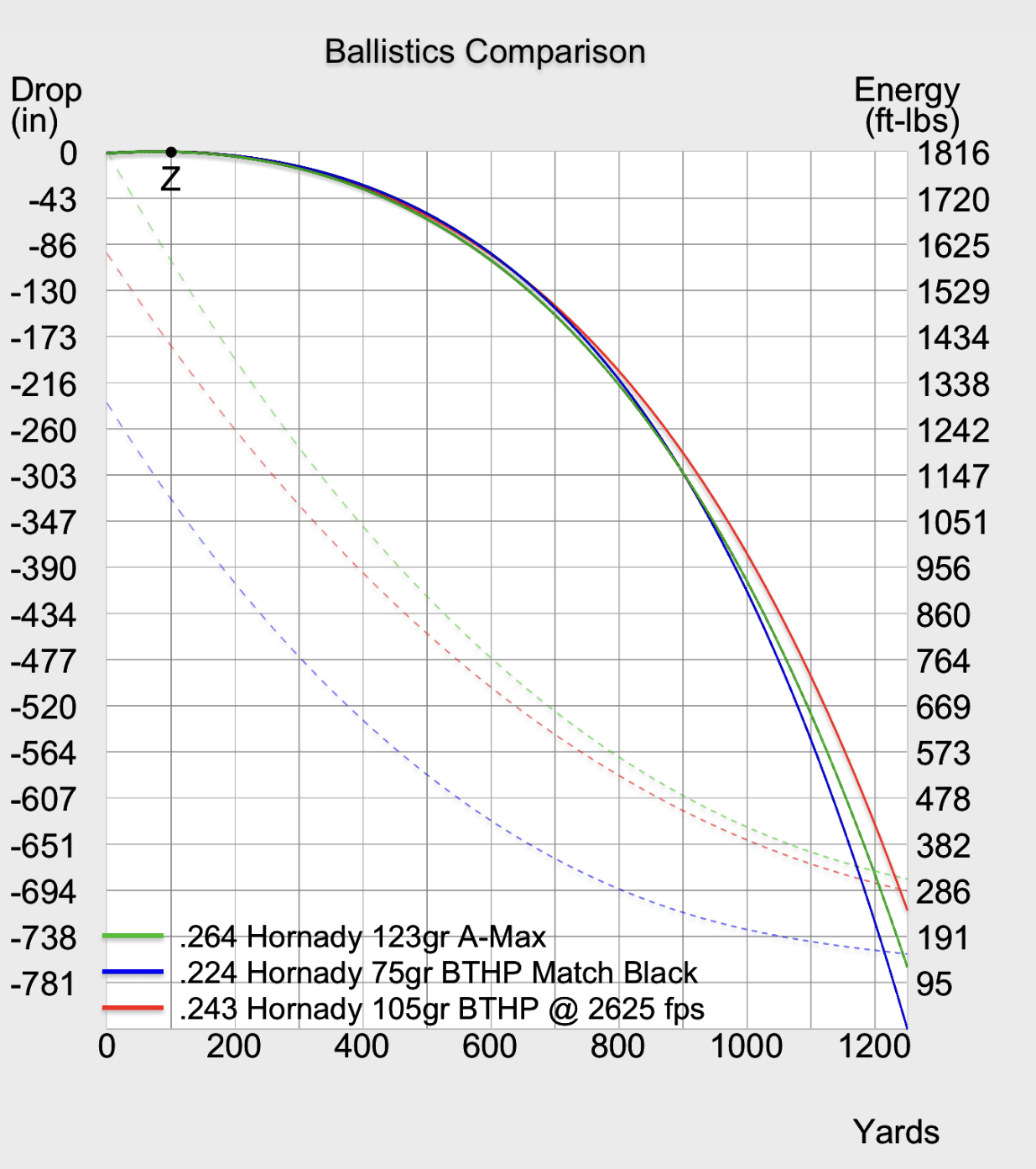

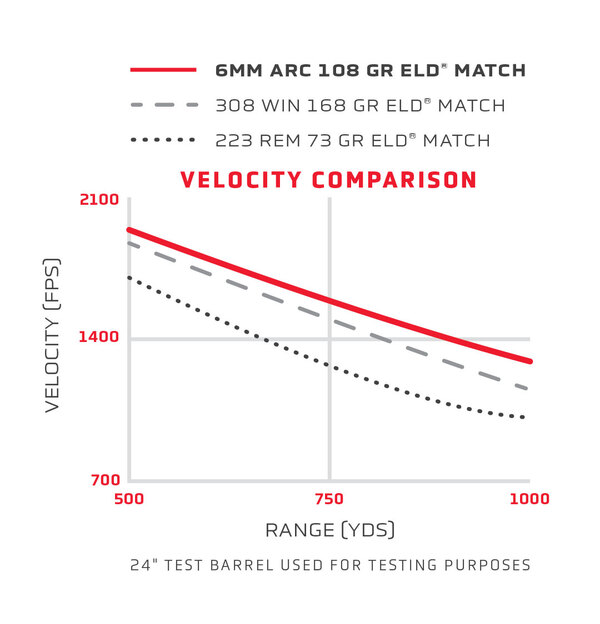

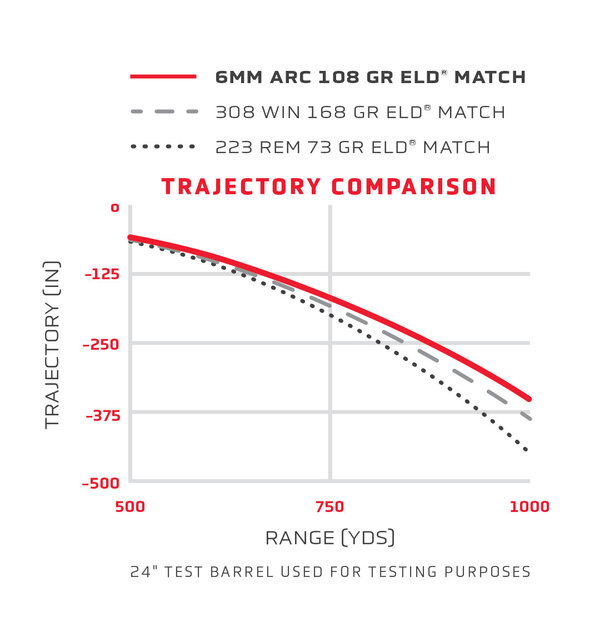

View attachment 7232View attachment 7233View attachment 7234

Most likely the military won't be using those bullets!



[BangBang]

Most likely the military won't be using those bullets!

No they won’t be using these bullets your right, I’d assume it would be along the lines of the black line of some sort. I myself like it though. If it really takes off, I don’t know it may not.



[BET7]

Most likely the military won't be using those bullets!

I believe the Army has already selected SIG for the new next Generation Squad Weapons and it's 6.8mm hybrid ammunition. Talyn posted a link on this previously. Hornady was one of the companies that competed for the contract with their 6mm ARC. Below is an excerpt from the article linked below, describing the SIG 6.8mm ammunition:

"The SIG Sauer 6.8 mm hybrid ammunition is designed for increased penetration at greater distances. Cohen continued, “Using patent-pending technology the SIG Sauer Ammunition division has engineered a completely new cartridge resulting in a more compact round, with increased velocity and accuracy, while delivering a substantial reduction in the weight of the ammunition.”"

An Official Journal Of The NRA | SIG Sauer Selected for Army Next Generation Squad Weapons Contract

The contract awarded to SIG Sauer for the U.S. Army NGSW contract encompassed an entirely new weapons system, complete with new 6.8 mm ammunition.

www.shootingillustrated.com
