911 .380 reassembly issue

[EBJIII]

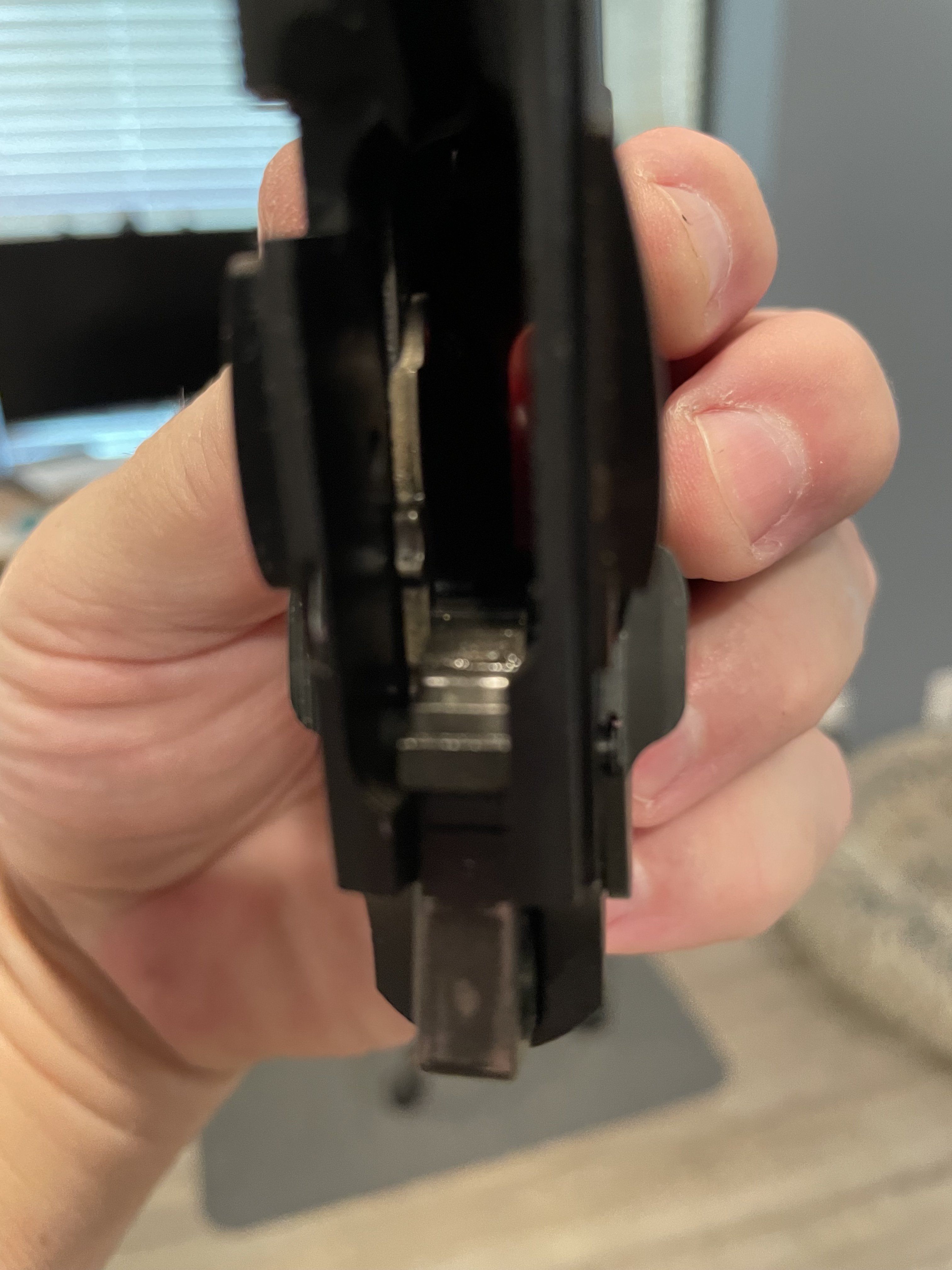

I took my 911 to the range yesterday and at some point the small “lever” left of the hammer will no longer move up far enough to allow a magazine to fully seat. Haven’t found anything on YouTube that addresses. I’ll take to a gunsmith if needed, hoping to get some guidance here first.

Thanks



[Annihilator]

If you bought it new, I would contact Springfield for the warranty, but call instead of emailing them …….
800-680-6866



[Area52]

Can’t see from the pic, but I wonder if the slide spring is still in there. These are known on Sig to pop out. Any recent field strip? Check Mag release button or mag bottom plate/bumper for deformity or obstruction.
Look up info for the Sig 938 and Kimber, both similarly styled to the SA 911 maybe that will get you some ideas.



[EBJIII]

Thanks, I didn’t actually think of that



[EBJIII]

Can’t see from the pic, but I wonder if the slide spring is still in there. These are known on Sig to pop out. Any recent field strip? Check Mag release button or mag bottom plate/bumper for deformity or obstruction.
Look up info for the Sig 938 and Kimber, both similarly styled to the SA 911 maybe that will get you some ideas.

It functioned perfectly at the range. It wasn’t until I got home and took it down to clean that the part quit moving up. I’ve tried applying gentle upward pressure on it but it won’t budge. It will move downward.



[Keystone19250]

If you bought it new, I would contact Springfield for the warranty, but call instead of emailing them …….
800-680-6866



[EBJIII]

Will call them in the morning. Appreciate the guidance and suggestions.



[uspatriot1960]

I forget what that part is called, but basically, you pushed it down too far when you went to reassemble. It’s a PITA to fix. Essentially, there are a couple flat springs in the grip that you need to get to and reposition that piece to get it stay up. This happened to me with a Kimber Micro 9 a couple years ago. I’ll see if I can find a video on it. That’s how I was able to get it back the way it was.



[uspatriot1960]

That part is the ejector. I’m having a hard time finding the video that helped me with it. It was several years ago and I no longer have the Micro 9. But I do have the Springfield 911 in .380. And believe me, I’ve been VERY careful about pushing that down too far. You really only want to barely push it down far enough to clear the slide and no further. I’m sure Springfield would fix it quick. There’s a way to do it, but it’s a pain. Maybe XDman has a video on it. Hopefully, he’ll chirp in.



[EBJIII]

I most probably pushed it too far down when reassembling after cleaning.



[uspatriot1960]

It’s a mistake you’ll never make again!! Lol. Good news is you didn’t ruin your gun.

Keep trying searches for it under the 911, Kimber Micro 9 and the Sig P238 (I believe). They all use the same mechanics.



[uspatriot1960]

I think this is the video I used. This makes it sound simple, which it is fairly simple. But to get it right, it’s a pain and takes some patience…



[EBJIII]

I think this is the video I used. This makes it sound simple, which it is fairly simple. But to get it right, it’s a pain and takes some patience…

Thanks all for the assistance. I found that video and a few other. I’ll work on the fix today.



[uspatriot1960]

EBJIII, you ever get this reassembled? How’d it go?



[EBJIII]

I have tried but haven't quite figured it out. I am pressing the spring backwards, but not getting enough movement/space to allow the ejector to return to it's proper position. I won't give up just yet, will try again shortly.



[uspatriot1960]

I have tried but haven't quite figured it out. I am pressing the spring backwards, but not getting enough movement/space to allow the ejector to return to it's proper position. I won't give up just yet, will try again shortly.

Yeah, like I said earlier, it's fairly simple, but a major PITA. Took me a while of finagling. I don't have the Kimber Micro 9 anymore that this happened with, but I do have a SA 911 in .380 and I'll never make the mistake of pushing that ejector down too far again...



[EBJIII]

Just figured out what I was doing wrong. I missed the part about removing the main spring assembly retainer pin and dropping it down a bit to allow the ejector to properly reset. All is right with my world now.



[uspatriot1960]

Just figured out what I was doing wrong. I missed the part about removing the main spring assembly retainer pin and dropping it down a bit to allow the ejector to properly reset. All is right with my world now.

Good deal!! Glad you got it worked out!! Enjoy that gun, it's fun to shoot.



[EBJIII]

Thanks. I've had it for a couple of years now and do love it. I recently acquired a Kahr CT 380. I like it's lightness, but the 911 is just so much nicer.



[EBJIII]

Well, a new issue has developed. I have emailed Springfield for instructions on how to send in for repairs.

The new issue is that most of the time the hammer follows the slide forward, meaning it does not stay open and cocked. It will also not let me manually cock it. I think it's time a real professional takes a look.
